Automatic Ampoule Inspection Machine Made in India

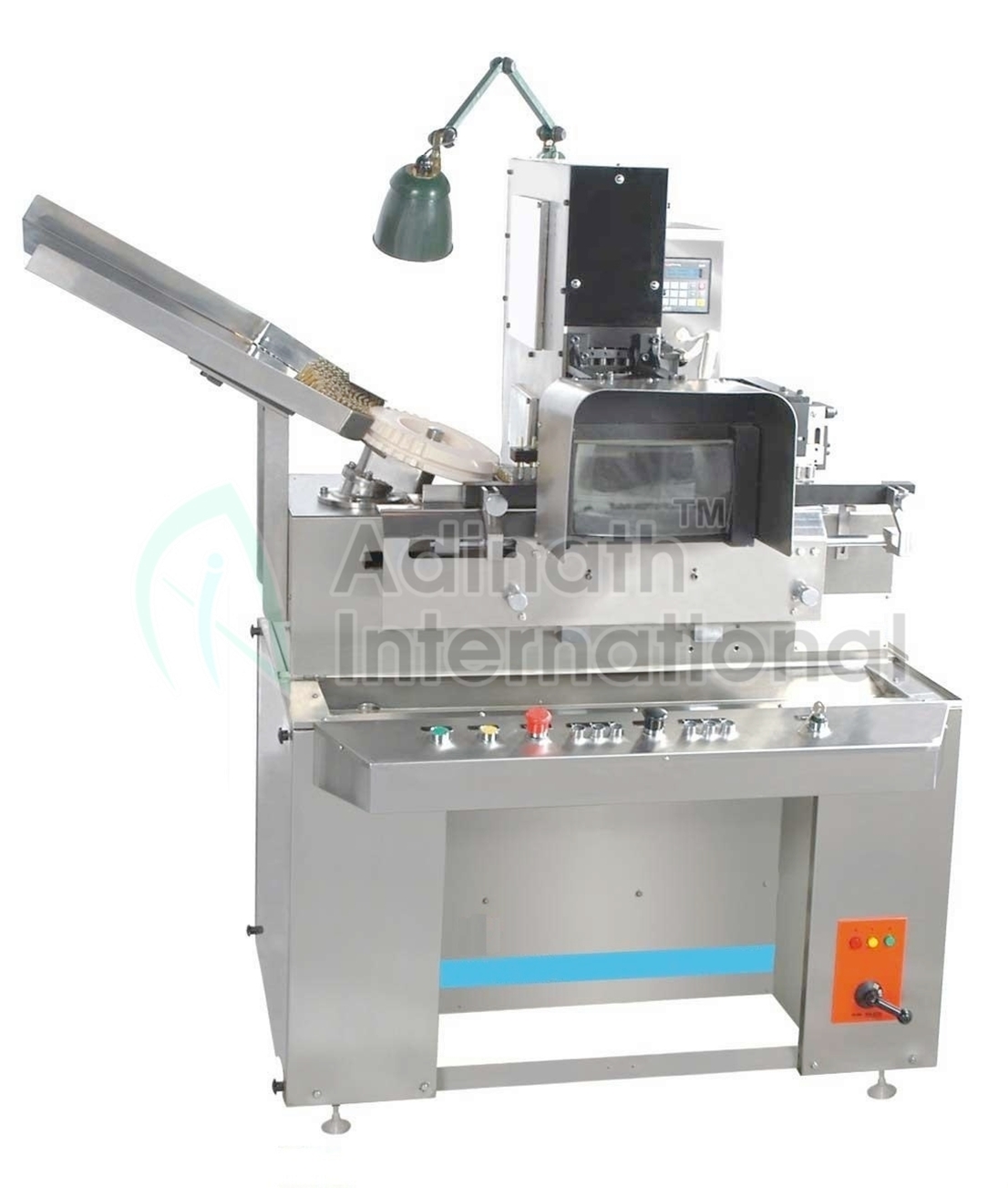

Automatic Ampoule Inspection Machine

Automatic Ampoule Inspection Machine

Ampoule Inspection Machine

Salient Features

  • Compact GMP model.
  • All contact parts are made from high quality Stainless Steel.
  • Spinners equipped with ampoule holder to detect cracks, charring on the mouth of the ampoules.
  • Compact ejection system occupies very little space.
  • RPM of spinner can be adjusted to give desired vortex on liquid.
  • High quality lens reduce operator eye strain.
  • Minimize breakage of ampoules due to adequate bearing points on spinners.
  • Easy access for cleaning & maintenance.
  • Short transport time as compare to inspection time.
  • Facility of repeat the cycle

Process Operation

The filled ampoules are loaded in to the infeed chute from there they are transferred in batched by an index wheel on to a linear transport rack.
The rack transfers the ampoules on to the inspection station, where spinners spin the ampoules at predetermined RPM so that a vortex is formed. Light coming from behind the ampoules magnifies all particles/fibers with the help of lens.
The ampoules are rejected by pressing rejection switches ergonomically located for operator’s convenience. A numbered light kept just above the magnifying lens within the operator’s field of vision lights up indicating the ampoules which have been rejected.
The ampoules batches then transferred onto the rejection station where the ampoules rejected at the inspection station are automatically rejected out. A numbered light lights up above the lens indication a positive rejection taking place.
In case rechecking is desired before checking the next lot, a facility for repeat cycle is provided.
The accepted ampoules are transferred onto the collection station where they are collected in tray.

Technical Specification

Production Output 60 to 72 ampoules per minute
Power Supply Main Machine: 0.5 H.P., 1440 RPM
Spinning Assembly: 0.25 H.P., 1440 RPM
Power Characteristics 415 volts, 3 phase, 4 wire system, 50 hertz
Input Specification Container Diameter: 11mm to 15mm
Container Height: 40mm to 100mm
Overall Dimension 1565mm (L) x 1010mm (W) x 1670mm (H)
Net Weight 450 kgs. approx.
Production Output 60 to 72 ampoules per minute
* Power voltage can be adjusted as per customer’s domestic power voltage requirements.
* Rights of technical improvements & modification reserved.
* Illustrations & dimensions are shown for information purpose only.
